Press Machines

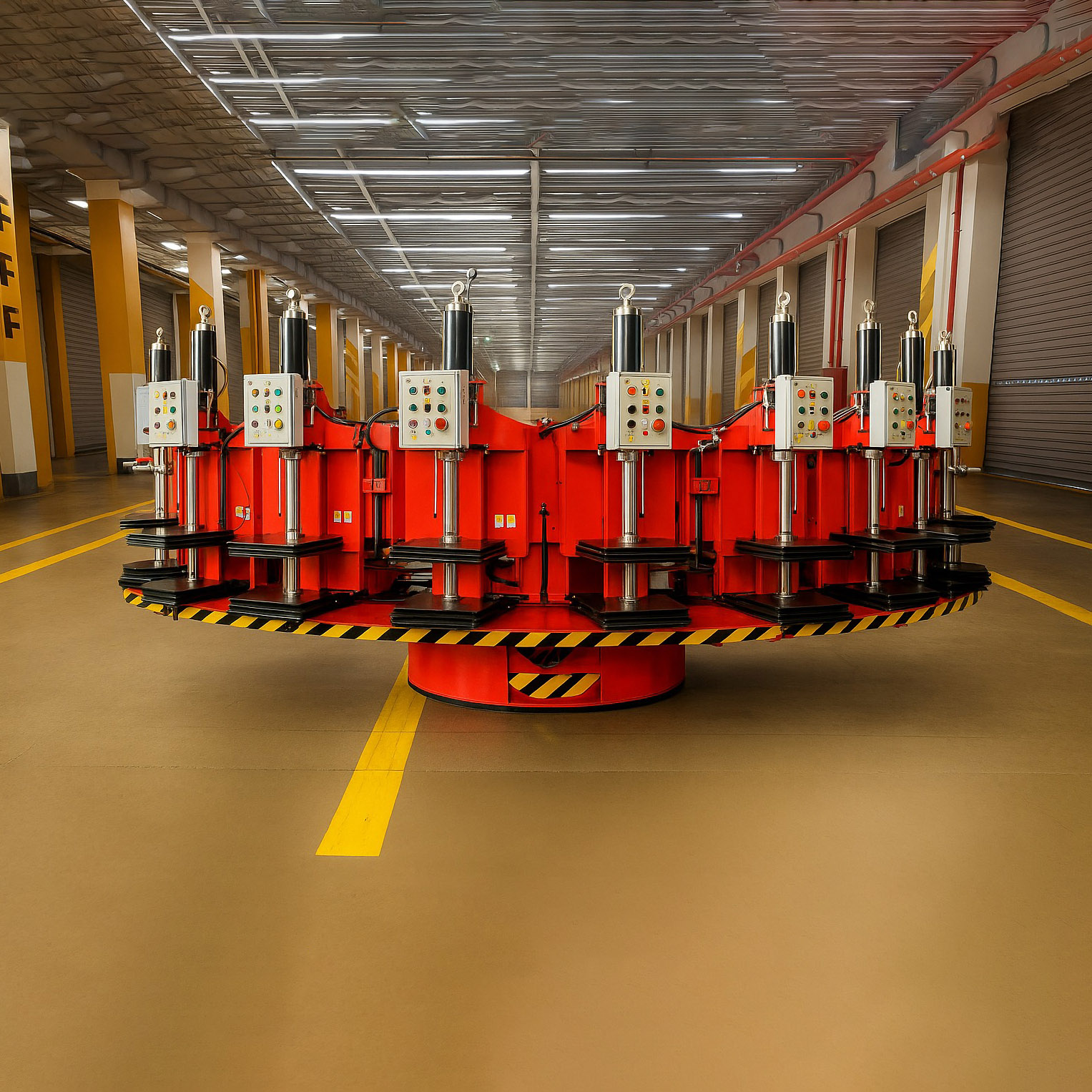

ROE-AHTAPOT PRES 21
21 ARM OCTOPUS RUBBER PRESS MACHINE
– Unique in the world and a leader in its field with its capacity and features
– Be a pioneer in your industry with 21-arm rubber press
– Maximum savings in time and labor
– Possibility of easy replacement during mold change
– Possibility to work with different sizes at the same time
Available Molds:
– Puzzle
– 40 x 40
– 50 x 50
– Hexagonal molds
Features ;
– Outer diameter 6 Mt
-80 items per hour (20 mm)
– 380 Volt (3 Phase) 180 Kw
– Automatic speed adjustment according to product thickness
– 5.5 Kw Hydraulic Motor
– 300 lt oil capacity
– Heating feature up to 200 degrees
– Lower and upper molds can be adjusted to the desired degree
– Option to place separate molds on each arm
– The pressure applied to each arm is between 8-10 tons
– Ability to manually lower and remove when desired
– Table dimensions 600×600 with heater

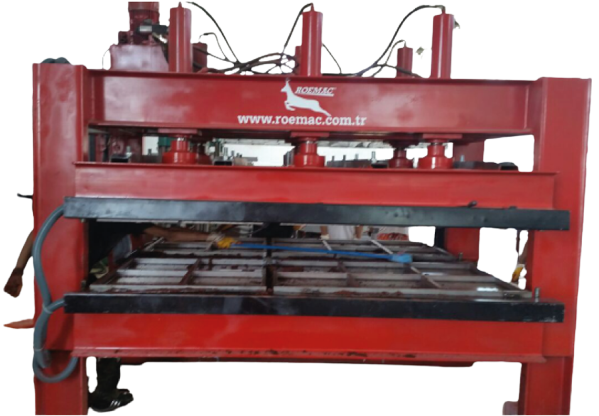

ROE-PRESS 21
RUBBER PRES MACHINE
Roe press exposes the rubber material under pressure and temperature to cook and harden specially designed by Roemac Machinery to ensure that it wins. Automatic It offers the possibility of cooking at desired degrees with control and temperature adjustment.
- Weight : 5 TON
- Width : 1250 mm
- Length : 3000 mm
- Height : 3000 mm

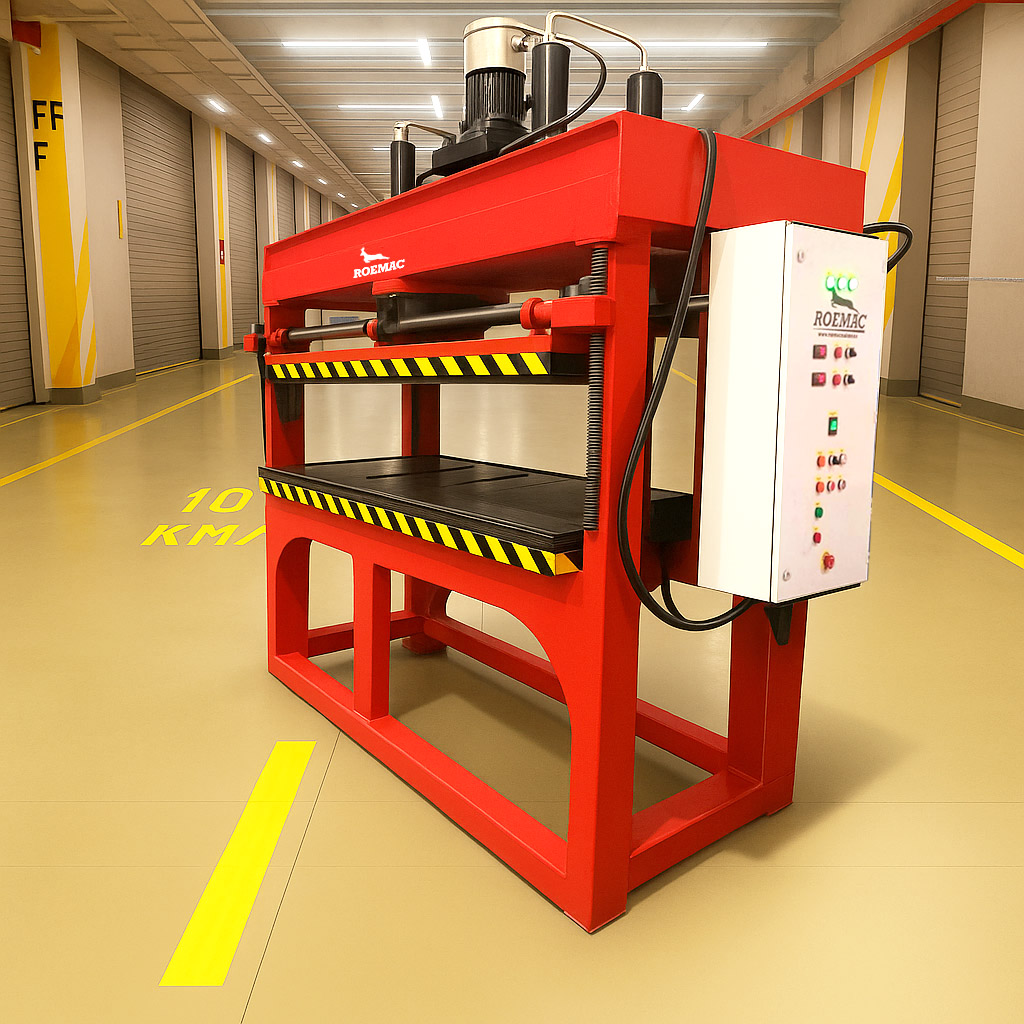

ROE-PRESS 14
RUBBER PRESS MACHINE
The ROE Press 14 has been designed specially by Roemac Machine with the purpose of exposing the rubber material to pressure and heat and thus, hardening it.
It allows the desired levels of hardening with its automatic control and temperature setting.
- Weight : 3 TON
- Width : 1250 mm
- Length : 2200 mm
- Height : 3000 mm
